CPVC Butterfly Valve

CPVC Butterfly Valve

1000 INR/Unit

Product Details:

  • Connection Socket Joint
  • Shape Other
  • Supply Ability : 5000 Carton Per Month
  • Click to view more
X

Price And Quantity

  • 1000.00 - 100.00 INR/Unit
  • 1000 INR/Unit
  • 2 Carton

Product Specifications

  • Socket Joint
  • Other

Trade Information

  • 5000 Carton Per Month
  • 4 Week
  • All India

Product Description

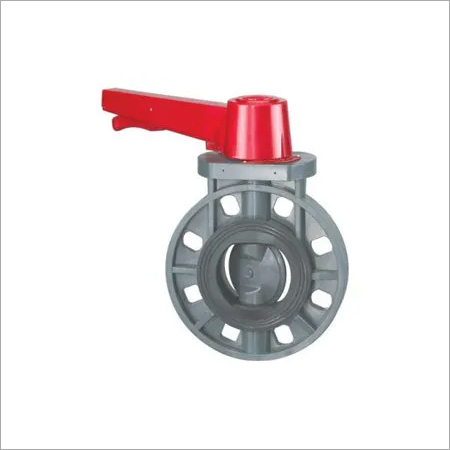

CPVC Butterfly Valve

  • Used for fast control and ON/OFF operations
  • Size range: from DN 40 up to DN
  • 200 mm, series DIN 3202 K2 and
  • ISO 5752 Medium series 25, DN
  • 250 · 300 mm, serie DIN 3202 K3 and ISO 5752 long series 16
  • Working pressure up to 16 bar at 20°C
  • Body material: GR-PP, resistant to UV rays
  •  Interchangeable disc in: PVC, PP-H, CPVC, ABS, PVDF
  • Full flanged body with oval holes to fit with flanges in different standards; equipped with ABS inserts to centre flanges and bolts up to DN 200; DN 250 and 300 drilling on request according to different standards
  • Hand operated version with ergonomic PVC hand lever,provided with locking device, quick manoeuvring, flow throttling (10 stops to position the disc every 10°)
  • Possibility to install gear box and actuators by means of a GR-PP upper flange with standard drilling (ISO 5211 F05, F07, F10), up to DN 200, drilling F10, F12, F14 without upper flange for DN 250 - 300
  • Special full drilled lug version PN 10 with captive stainless steel AISI 316 inserts (DIN 2501 or ANSI 150)
  • Interchangeable primary liner in elastomer EPDM, FPM, or NBR.
  • Possible mounting of valve as end valve, or quick discharge from tanks
